Integral housing coordinated lightning current and surge arrester for protecting single-phase TT and TN systems (“1+1” circuit) against surges.

Product Description

FLP50GR-275/1+1

Integral housing coordinated lightning current and surge arrester for protecting single-phase TT and TN systems (“1+1” circuit) against surges.



  • Coordinated spark-gap-based lightning current and surge arrester
  • Maximum systems availability due to RADAX Flow follow current limitation
  • Capable of protecting terminal equipment



Technical data

Type FLP50GR-275/1+1
SPD according to EN 61643-11 / IEC 61643-11 type 1 / class I
Nominal a.c. voltage (Un) 230 / 400 V AC (50/60 Hz)
Max. continuous operating a.c. voltage [L-N] (Uc) 275 V AC (50/60 Hz)
Max. continuous operating a.c. voltage [N-PE] (Uc (N-PE)) 255 V AC (50/60 Hz)
Lightning impulse current (10/350μs) [L+N-PE] (Itotal) 100 kA
Specific energy [L+N-PE] (W/R) 625,00 kJ/ohms
Lightning impulse current (10/350μs) [L-N]/[N-PE] (Iimp) 50 kA / 100 kA
Specific energy [L-N]/[N-PE] (W/R) 625,00 kJ/ohms / 1,25 MJ/ohms
Nominal discharge current (8/20μs) [L-N]/[N-PE] (In) 50 kA / 100 kA
Voltage protection level [L-N]/[N-PE] (Up) 2,0 kV / 1,5 kV
Follow current extinguishing capability a.c. (Ifi) 50 kArms / 100 Arms
Follow current limitation / Selectivity no tripping of a 20 A gL/gG fuse up to 50 kArms (prosp.)
Response time (tA) < 100 ns
Max. backup fuse (L) up to IK = 50 kArms (ta < 0,2 s) 500 A gL/gG
Max. backup fuse (L) up to IK = 50 kArms (ta < 5 s) 315 A gL/gG
Max. backup fuse (L) up to IK > 50 kArms 200 A gL/gG
Max. backup fuse (L-L’) 125 A gL/gG
Temporary overvoltage [L-N] (TOV) (UT) – Characteristic 440 V / 120 min. – withstand
Temporary overvoltage [N-PE] (TOV) (UT) – Characteristic 1200 V / 200 ms. – withstand
Range of operating temperatures [parallel] / [series] (TU) -40…+80°C / -40…+60°C
Operating state / fault indication –
Number of ports 1
Cross-sectional area (L, L’, N, N’, PE, PE’) (min.) 10 mm2 solid /flexible
Cross-sectional area (L, N, PE) (max.) 50 mm2 stranded / 35 mm2 flexible
Cross-sectional area (L’, N’, PE’) (max.) 35 mm2 stranded / 25 mm2 flexible
For mounting on 35 mm DIN rail acc. to EN 60715
Enclosure material thermoplastic
Place of installation indoor installation
Degree of protection IP20
Capacity 4 module(s), DIN 43880
Approvals CE



See also different:

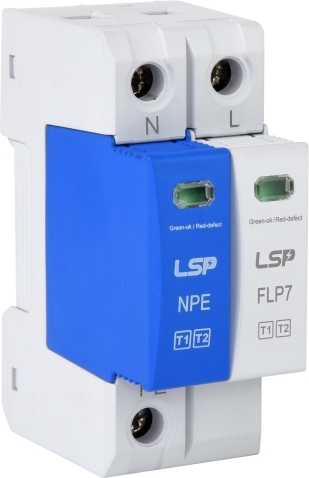

FLP7-275/3+1
